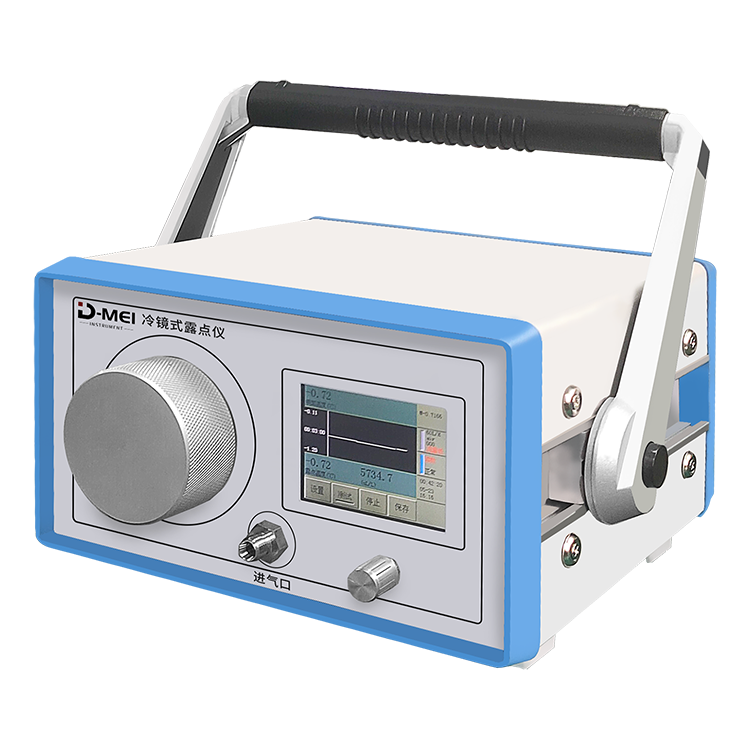

DY-LD02 Cold Mirror Dew Point Apparatus(Removable Type)-70℃～+20℃

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-LD02 cold mirror type dew point meter (extraction type) -70℃ ~ +20℃ for N2, H2, O2, compressed air, SF6, propylene, ethylene and other gases in the dew point measurement precision instrument.

The product is used alone to detect trace water in the gas. The method of use is to flush the gas into the dew point meter, analyze the water content, and then empty it.

The product adopts cold mirror type principle, touch screen control system, automatic continuous analysis.

DY-LD02 cold mirror dew point meter has high precision, wide range, good stability and no drift. It is widely used in food, pharmaceutical, electric power, chemical industry, gas, national defense industry, scientific research measurement and other fields.

Product advantage

√ Range width: -70℃ ~ +20℃

√ High accuracy: ±0.2℃ (optional 0±0.1℃)

√ High resolution: 0.01℃

√ Realize the measurement and display of gas pressure, flow and temperature

√ Real-time display of the whole curve

√ Touch screen operation, Chinese and English double interface, easy to operate

√ Automatic balance system, short measurement time

√ Mirror pollution self-detection function, manual heating and cooling, manual cleaning mirror

√ Data storage, query and print functions

√ Long-term stability, good repeatability, can be done online analysis

[Technical indicators]

√ Range: -70℃ ~ +20℃ (optional)

√ Accuracy: ±0.2℃ (optional ±0.1℃)

√ Flow measurement: 0-90L/H

√ Sample gas pressure: 0-2MPa (optional)

√ Sample gas flow rate: 0.25 ~ 2.4L/min

√ Dew Point Temperature Sensor: Accuracy ±0.1℃; Resolution: 0.01℃

√ Refrigeration mode: four-stage semiconductor Par paste refrigeration

√ Signal output: Serial communication R232

√ Balance time: 3 ~ 8min (outside the pipe blowing and cleaning)

√ Power supply: 22VAC, 50/60Hz; Power: 60 w

√ Operating temperature: -20 ~ 50℃; Humidity: ≦ 95%

√ Life: ≧10 years

√ Weight: 6KG;

√ Size: 320*300*190mm
